ECOTEC Plus VMW

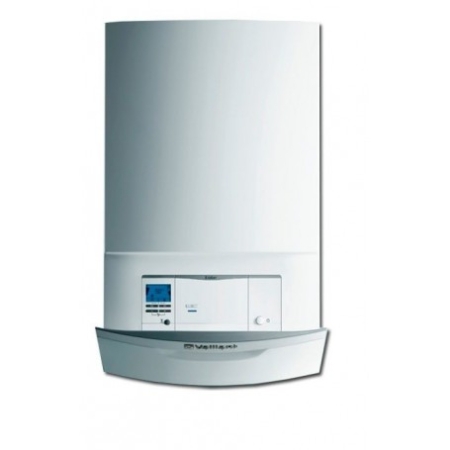

Mixed boiler of gas condensation Vaillant ecoTEC Plus VMW IS 306/5-5 with power in heating of 25 kW and in ACS of 30 kW. Energetic qualification To/XL. With microacumulación intelligent, with option of previous preparation when it was necessary. Poised boiler to work like direct support of solar installation.

The boilers Vaillant were the first in adopting the bomb of tall energetic efficiency by what the saving in electricity is main even being in Stand-by since has a reduced consumption.

The system Vaillant Comfort Safe, is a system of operation of emergency. Inside this system is the comprobación of llama FliDe (Flame Lift Detection),that achieves that the user do not remain without service in case of an eventual anomaly in the combustion.

• Power in heating (80/60ºC): 25 kW
• Rank of modulation of useful power: 5-25 kW
• Performance to 30%: 108%
• Energetic qualification: To/XL
• Power in sanitary hot water: 30 kW
• Discharge of water to T25/30ºC: 17,2/14,3 L/min.
• Rank of temperature of of hot water (adjustable): 30-75ºC
• Minimum discharge of start: 1,5 l/min.
• Minimum pressure of start: 0,1 bar
• Type of gas: Natural/propano.
• Key of filled of heating with antirretorno.
• Comfort in ACS as IN 13203: Three stars ***
• Class Nox: 6
• Preparation ACS: Microacumulación.
• Deactivation previous preparation ACS: If.
• Connections ProE.
• Connection probe of security am used to radiant.
• Fan modulante.
• Valve of three roads.
• Volume of the glass of expansion: 10 l
• Start of gases: Polipropileno 60/100 mm of diameter.
• Quantity of water of condensation to 50/30ºC, aprox.: 2,55 l/h
• Homologation CE: 0085CM0321
